| Manufacturer | Taito |

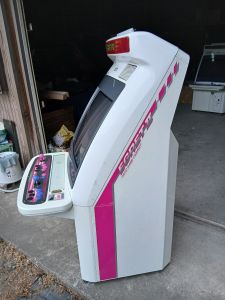

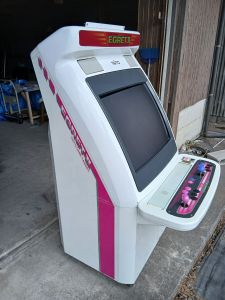

| Color | White with a magenta side stripe; pink-violet 1P and blue 2P controls |
| Monitor | 29" CRT |
| Monitor Model | Nanao MS9-29 |
| Scan Rates | 15 kHz, 24 kHz |
| Orientation | Rotates |
| Wiring | JAMMA |

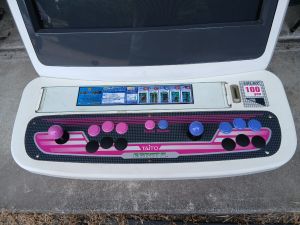

| Control Panel | 2 players, 1 joystick and 3 buttons each (Taito M03 15223A): Sanwa JLF-TP-8 sticks, OBSF-30 play buttons, OBSF-24 start buttons. Taito also made a 6-buttons-per-player panel (U01 00259A). |
| Dimensions | 750 × 903 × 1450 mm (1764 mm tall with the instruction panel) |
| Weight | 110 kg |
| Power | AC 100V 50/60 Hz, 125 W |
| Notes | Sold as "TAITOVISION 29 EGRET II" (イーグレット・ツー). A Japanese candy cabinet. The monitor sits on a roller mount and is turned by hand between horizontal and vertical; the bezel has to come off first. Some cabinets shipped with a Toei monitor instead of the Nanao; the monitor adjuster inside the coin door shows which. Taito made at least two revisions (parts catalog labelled VER.2). A mono/stereo switch on the service panel covers JAMMA boards and Taito F3/FX-1 boards. Not to be confused with the 2022 tabletop EGRET II mini. |
| Links | Hard*Candy · Operator manual · Parts catalog |
Added by Burnett
